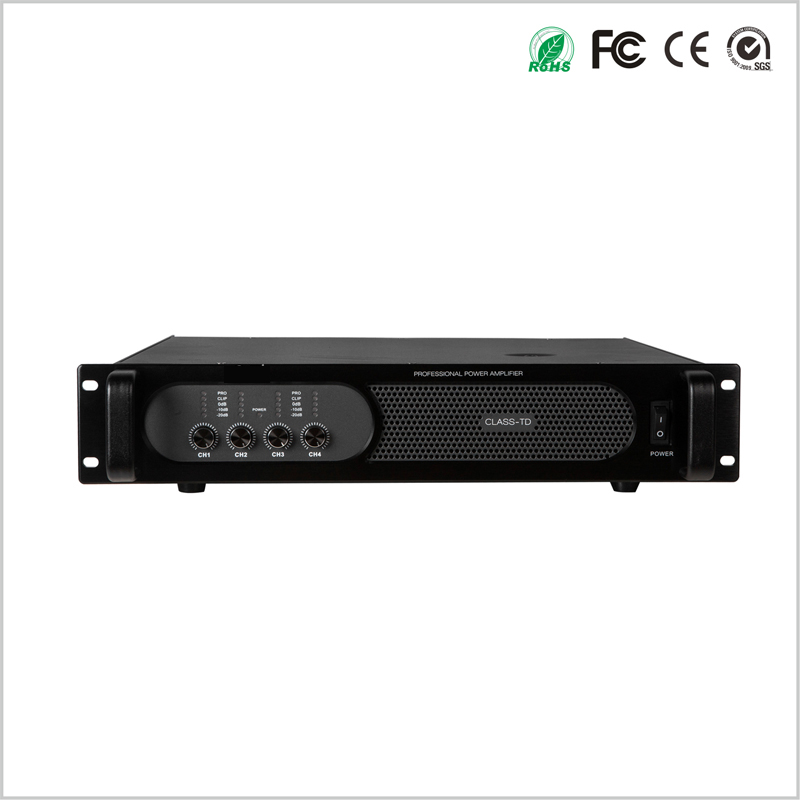

4 Channel 2U Power Amplifier

BASIC INFO


◆The new Class-TD type 4-channel professional ampl ifier, high efficiency, pure sound qual ity, low heat.

◆Circulating transformer power supply, low-frequency more powerful, better strength.

◆Efficient cool ing system, the chassis internal and surface temperature is very low.

◆Ultra-perfect protection system, high frequency protection, overload / overcurrent protection, over temperature protection,

output short circuit protection, DC protection, distortion l imiting protection.

◆Unique boot volume gradual ly large function, can protect your misoperation damage to the speaker.

◆Smal ler, l ighter chassis containing more power, very easy to tour appl ications.

◆SMT chip technology, more stable performance.

◆Professional-grade fever capacitance, low frequency more intensity, clean and clear treble.

Specification


MODEL P412 P410
Rated output power 8Ω 1200W*4 1000W*4
Rated output power 4Ω 2000W*4 1800W*4
Frequency response 20Hz-20KHz
Signal-to-noise ratio >103db
Sensitivity 0.775V/1.0V/1.4V
THD <0.05%
Coeffecient of damping >1000
Resolution >70db
Conversion rated >20V/µs
Input Resistance 10kΩ/20kΩ
Output Circuit: Class-D
Net weight 24
Package size(W*D*H) 580*460*165mm
