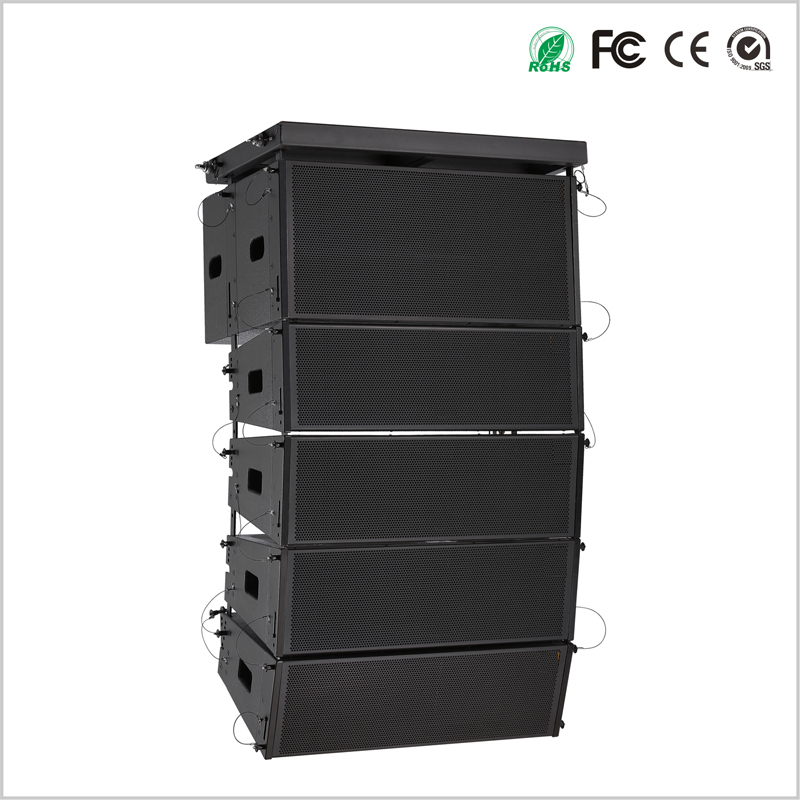

2 Way Dual 10 Inch Line Array Speaker

BASIC INFO
Description

Indoor and outdoor performance/fixed instal lation two frequency l ine array

speakers, can deal with unexpected rain weather and water density high

humidity requirements of professional ampl ification.

All parts according to the grades of ip46 international dustproof and waterproof

design standards, and particularly on enclosure structure diversion, splash

device is designed. Special production seal ing technology is adopted in the

assembly of the equipment, so as to ensure that the equipment can meet the

dustproof, waterproof and safe features of ip46 level or above, and at the

same time can normally play the function characteristics of high quality sound

reduction.

Speakers can adjust the angle of 0 to 10 °, the speaker accessories design

simple and flexible, you just need to 2 engineering personnel easy to form a

system. Therefore, we only need to select an appropriate number of ultra-low

ground components to form a sound amplification system with wide directionality,

long projection distance, high sound pressure and good sense of hearing.

Are widely used in the movie theater, multi-function hal l, churches, schools,

large and medium-sized stadiums, and large and medium-sized fami ly the

ampl ification performances, language, etc.

Specification

odel V10 V10A
System 2-WAY FULL RANGE Sub Bass
Frequency response 45Hz-18KHz 40Hz-400KHz
Driver LF:10"×2 (170 magnet Φ75mm) LF:15"×2 ( neodymium Φ76mm)
HF:3"×1 ( neodymium Φ75mm)
Nomina limpedance 16 Ohms 4 Ohms
System sensitivity 97dB 105 dB
Rated power 700W 800W
Peak power 2400W 3200W
Maximum SPL 131dB 140dB
Disperion  Angle horizon:100° ,verticality:15° /
Crossover  mode Inside  crossovers / External divider External divider
Suspension Linear  suspension Linear  suspension
Net weight 41.7KG 80KG
Size(mm) 840W×410D×278H 840W×605D×400H
Package size(mm) 920W×490D×360H(flight case ) 892W×650D×457H(flight case )
