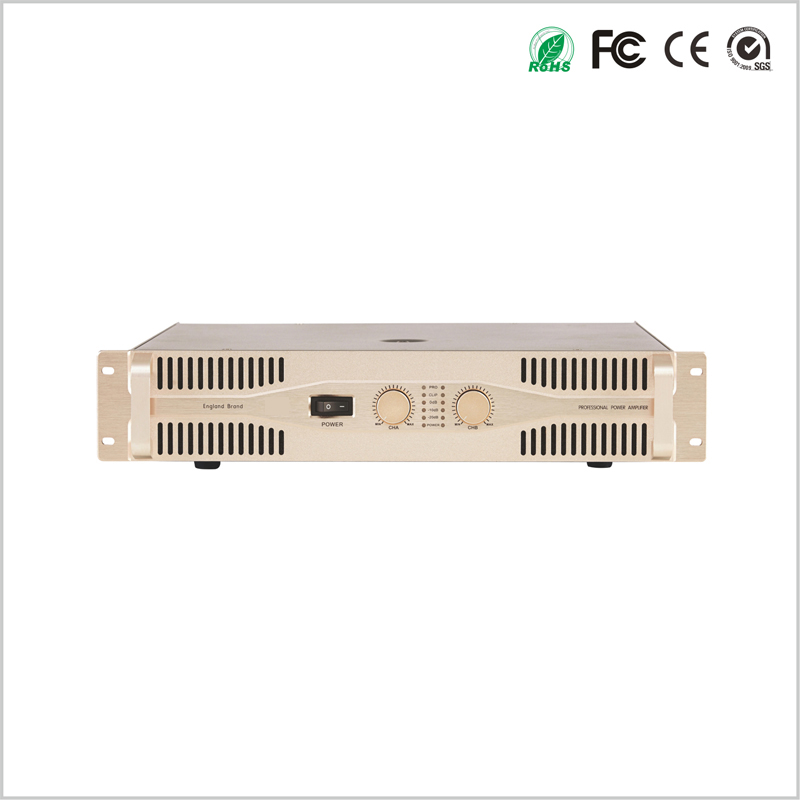

Power Amplifier

BASIC INFO
Description

The semiconductor used is a world famous brand -  ON Semiconductor;

Using special audio dedicated electrolytic capacitors, high grade and good sound;

SMT patch technology, high integration, product performance is more stable;

Intelligent stepless variable speed fan cooling system, ultra-quiet in low power or cold machine;

The perfect protection system is extremely stable in extreme environments, without accidents;

All adopts templating and compact design. It has precise and comprehensive protection system, beautiful and dynamic sound, stable and reliable performance, and exquisite appearance.

Professional perfect dynamic limiter can effectively protect your sound system without losing sound quality;

Applicable to medium and high-end professional markets, large installation markets, large discs, nightclubs, stadiums, cinemas, etc.


Specification

Model A5110 A508
Rated power(power)(1KHz,THD+N=0.7%) 8ΩStereo 1000WX2 800W
4ΩStereo 1650WX2 1350W
4ΩBridged 3400W 2800W
Low cut 30Hz 30Hz
Protect 1.DC protection 2. short circuit protection 3.overheat protection 4.over current protection 5.Input overload protection 6.output overload protection  7.Soft start
frequency response 20Hz~20KHz(+-0.3dB)
sensitivity 0.775V/1.0V/1.44V
work mode Stereo/parral/bridged
fans working way intelligent speed adjustment
connector(each channel) input connector XLR(6.3&)
output connector binding post&speaker plug(speakon)(SPEAKON)
input impedance balance input 20K
unbalance input 10K
mixed voice reduction ≥60dB
Signal to noise(RMS 8Ω) ≥103dB
damp factor ≥650
THD ≤0.08%
Position response ±10°
speed rate ≥25V/μs
output circuit mode Class H+
Net weight 27KG 25KG
product size 484W × 460D × 88H
package size(mm) 590W × 600D×145H
