Function Features

*With desktop design, beautiful appearance, light weight, and easy to carry.

*It can be used for different sound effect places.

*Super sound quality and high definition, switching options can be connected to 70V or 100V output, and to provide beautiful sound for long distance broadcast.

*The output terminal uses standard 6.3 audio microphone jack and line input use RCA jack, to provide users with different audio input interface options

*1 channel microphoneinput with independent volume control.

*2 channel lineinputs with independent volume control. And also with EMCinput.

*With function of auto play MP3 and power off memory.

*With priority function, when MIC 1 input, the other audio signal can be disconnected.

*With power indicator, the machine has a signal indicator, overload, protection indicator, and 70V, 100V output switch indicator.

*With function of short circuit, overload and over temperature protection.

*With function of MP3 module, can readMP3 files in USB flash disk, SD card, support for Bluetooth of mobile phonesand FM radio.

Technical Parameters

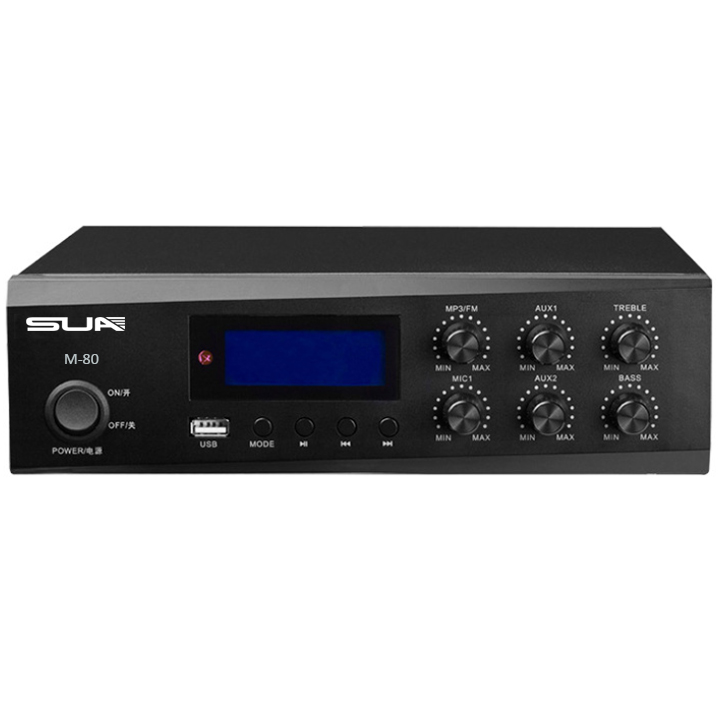

Model	M-80
Rated Power Output	80
Speaker Output	70/100V
Input Sensitivity&	MIC input: + 5mV, unbalanced 6.3 connector
Source Impedance	AUX input: 350mV, unbalanced RCA connector
Tone	Bass: 100Hz±10dB, Treble: 10KHz±10dB
Frequency Response	80~16KHz (-3dB)
S/N Ratio	≥75dB
T.H.D	Rated power output, distortion ≤ 1%
Priority function	MIC 1 has the priority than other input
Protection	Short circuit, overload and overheating protection.
Input power	~220V-240V 50/60Hz
Power Consumption	320W
Weight	4.1Kg
Dimension	300×88×250mm
