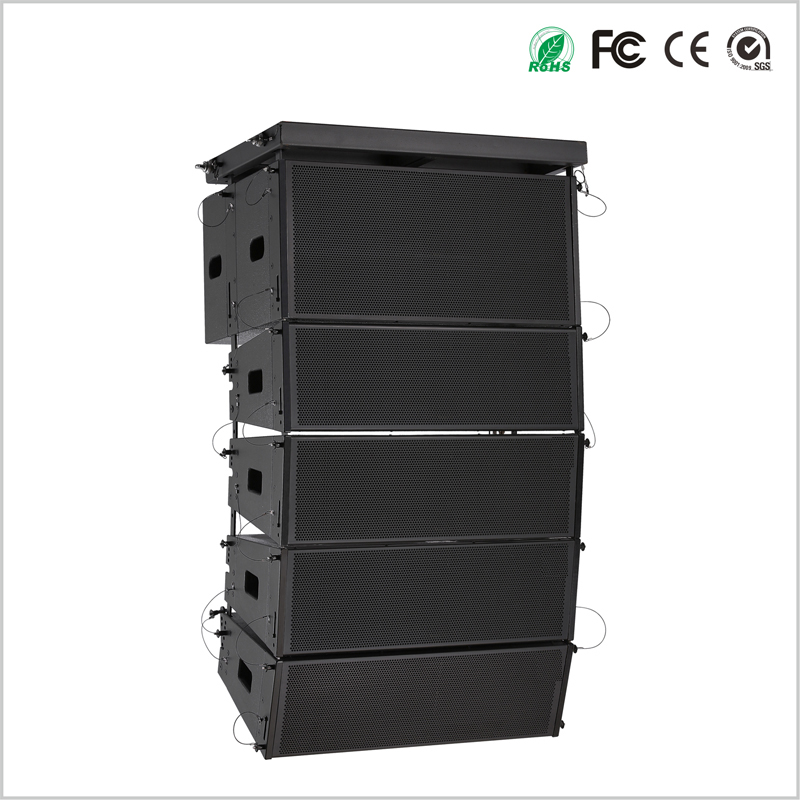

2 Way Dual 12 Inch Line Array Speaker

BASIC INFO
Description

◆Indoor and outdoor performance/fixed instal lation two frequency l ine array

speakers, can deal with unexpected rain weather and water density high

humidity requirements of professional ampl ification.

◆All parts according to the grades of ip46 international dustproof and waterproof

design standards, and particularly on enclosure structure diversion, splash

device is designed. Special production seal ing technology is adopted in the

assembly of the equipment, so as to ensure that the equipment can meet the

dustproof, waterproof and safe features of ip46 level or above, and at the

same time can normally play the function characteristics of high quality sound

reduction.

◆Speakers can adjust the angle of 0 to 10 °, the speaker accessories design

simple and flexible, you just need to 2 engineering personnel easy to form a

system. Therefore, we only need to select an appropriate number of ultra-low

ground components to form a sound amplification system with wide directionality,

long projection distance, high sound pressure and good sense of hearing.

◆Are widely used in the movie theater, multi-function hal l, churches, schools,

large and medium-sized stadiums, and large and medium-sized fami ly the

ampl ification performances, language, etc.


Specification

Model V12F V12FA
System 2-WAY FULL RANGE Sub Bass
Frequency response 80Hz-18KHz 42Hz-400KHz
Driver LF:12"×2,HF:1.73"×2 15"*2
Nomina limpedance 8 Ohms 4 Ohms
System sensitivity 101dB 98dB
Rated power 900W 1000w
Peak power 3600W 4000w
Maximum SPL 134dB 127dB
Disperion  Angle horizon:120° ,verticality:15° /
Crossover  mode Inside  crossovers/External divider
Suspension Linear  suspension
Net weight 60KG 85KG
Size(mm) 1080W×455D×350H 1088W×620D×520H
Package size(mm) 1166W×542D×448H(flight case ) 1162W×690D×590H(flight case )
