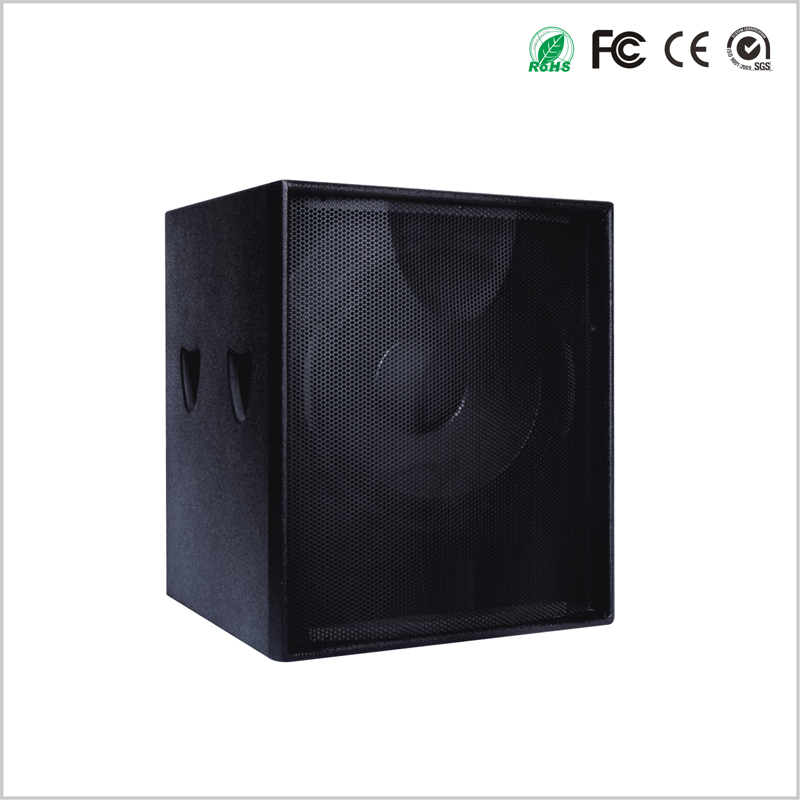

Single 18 600W Inch Subwoofer

BASIC INFO

  • Description

    ◆It is a remote subwoofer speaker.

    ◆The magnet is 220mm and voice coi l is 100mm,the frame is cast aluminum frame.

    ◆The subwoofer speaker has a high power,also has a clear and neat bass.

    ◆It is suit for club,stage,large stage,it is a best choice to suit with l ine array and stage speaker.

    ◆The case is birch plywood case.

    ◆The magnet is iron oxide,it has a high powe.

    ◆The voice coi l is adopted high qual ity material which can bear extremely high temperature to reach a long time working mode.

    ◆The high strength cast aluminum frame to reach a low resonance in the woofer.

    ◆The subwoofer speaker is appl ied for bars,club,stage,plaza,square and multifunction room.


    Specification

    Model W18 W15
    System SUB  BASS SUB BASS
    Frequency response 32Hz-400Hz 40Hz-400Hz
    Driver LF:18"×1 LF:15"×1
    Nomina limpedance 8Ohms 8
    System sensitivity 99dB 95dB
    Rated power 600W 350W
    Peak power 2400w 1400W
    Maximum SPL 133dB 126DB
    Disperion  Angle N/A N/A
    Crossover  mode External Crossover External Crossover
    Net weight 43kg 28KG
    Size(mm) 560W×595D×695H 471W×500D×684H
    Package size(mm) 650W×620D×750H 550W×520D×740H
