BASIC INFO
Description

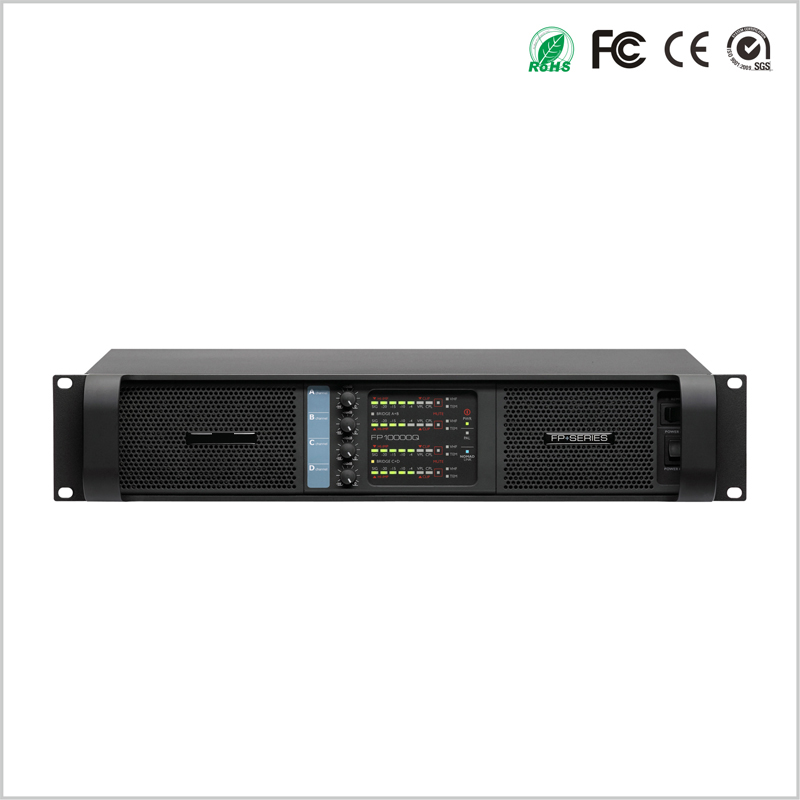

◆It is a switch power supply ampl ifier,the net weight is very low.
◆Adopt SMT technology,The qual ity is more stable and the spare parts are accurate.
◆It has 30Hz and 50Hz low cut mode to reach a perfect l imit function.
◆The work mode is stereo mode,bridged mode and paral lel mode.
◆It has independent cl ip.protect,signal direction,it wi l l watch the work mode of each channel easi ly.
◆The heat dissipation is very good,as it adopts intel l igent fans,it wi l l insure the machine in a cool situation.
◆The machine has internal l imit system.If the THD is more than 0.5%,the l imit system wi l l on work to protect the machine.
Specification
| FP Series | FP8000Q | FP10000Q | FP20000Q |
| 8ΩStereo Power(RMS) | 800WX4 | 1350WX4 | 4X2200W |
| 4ΩStereo Power(RMS) | 1400WX4 | 2700WX4 | 4X4000W |
| 2ΩStereo Power(RMS) | 1600WX4 | 2500WX4 | 4X4500W |
| 8ΩBridged Power(RMS) | 2800WX2 | 4200WX2 | 2X8000W |
| 4ΩBridged Power(RMS) | 3200WX2 | 5000WX2 | 2X9000W |
| Frequency Response(+o/-0.3dB,1W/8Ω) | 20 Hz - 34 kHz | 6.8 Hz - 34 kHz | |
| THD 20 Hz - 20 kHz for 1 W | <0.1% | ||
| Signal-to-Noise Ratio | >112 dBA | ||
| Channel separation (Crosstalk) at 1 kHz | >70 dB | ||
| Input Connectors (per channel) | 3-pin XLR, electronically balanced | ||
| Output Connectors (per channel) | Binding Posts 2-pole | ||
| Class | TD | ||
| TourClass Protection | ACL,IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient, current inrush, sub/ultrasonic input | ||
| Operating voltage, 230 V / 115 V nominal | 130-265 V / 65-135 V selectable | ||
| Voltage Gain(dB) | 23, 26, 29, 32, 35, 38, 41, 44 dB selectable | ||
| Input impedance | 20 kOhm | ||
| Level adjustment (per ch.) | Front-panel potentiometer, 31 position detented from -inf to 0 dB | ||
| Dimensions (W×H×D) | 483×88×396mm | ||
| Packing dimension | 580×180×560mm | ||
| Gross weight(kg) | 15 | 17 | 18.5kg |
| weight(kg) | |||
